Ürün Detayları
Menşe yeri: Guangdong, Çin
Marka adı: LINK-PP
Sertifika: UL,RoHS,Reach,ISO

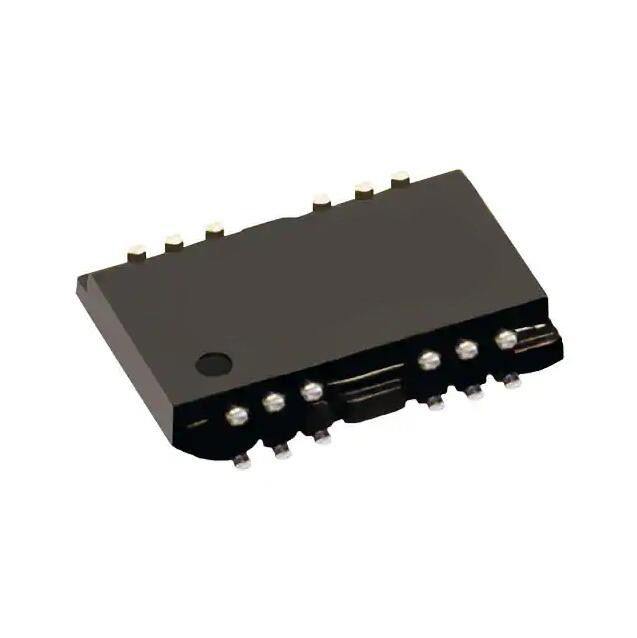

Model numarası: H0068ANL / H0068ANLT
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 400/2000/10K/25K
Fiyat: $0.06-$3.2
Ambalaj bilgileri: T&R
Teslim süresi: Stok
Ödeme koşulları: TT,NET30/60/90 Gün
Yetenek temini: 3KK/Ay
Özellikler: |
H0068ANL / H0068ANLT |
Uygulama: |
FE Transformatörü |
Dönüş Oranı: |
1: 1 |
pinler: |
16 |
Hipot: |
1500V |
Çapraz PN: |
LP41606NL |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Adım / Veri Sayfası |
Özellikler: |
H0068ANL / H0068ANLT |
Uygulama: |
FE Transformatörü |
Dönüş Oranı: |
1: 1 |
pinler: |
16 |
Hipot: |
1500V |
Çapraz PN: |
LP41606NL |
Archivi Disponibili: |
PDF / 3D / ISG / Stp / Adım / Veri Sayfası |
| Manufacturer | Pulse Electronics Network | |
|---|---|---|
| Series | - | |
| Part Status | Active | |
| Transformer Type | LAN 10/100 Base-T | |
| Inductance | - | |
| ET (Volt-Time) | - | |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.500" L x 0.347" W (12.70mm x 8.81mm) | |
| Height - Seated (Max) | 0.082" (2.08mm) | |
| Operating Temperature | 0°C ~ 70°C |
Electrical Specifications @ 25°C
1.Turns Ratio(%%P5%):
TX=1CT∶1CT RX=1CT∶1CT
2.OCL:350uH MIN @100KHz/0.1V
3.Insertion Loss:
0.3-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.CMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1500Vrms/0.5mA/60Sec.
8.Operating Temperature: 0℃～70℃/-40℃～+85℃
| 20PT1024X LF 10/100Base Dual Port Transformer 13F-2010CNL PHT 20pins Filter | |||
|---|---|---|---|
| 0875-1G2T-E3 | C855-2B4R-54 | 08B1-1X4T-36-F | 0879-2C6R-54 |
| 13F-2010CNL | 7490101120 | 0833-2X1T-33-F | C850-2G6R-54 |
| 0826-1X4T-43-F | 0810-2H6R-28-F | 0811-2X4R-28-F | 0854-2X8R-GK-F |
| L826-1X4T-23-F | 20PT1024X LF | 7490101120 | 0895-2X6R-GK |
| 13F-2010CNL | S553-6500-D8 | S560-6600-GG | S553-6500-43 |
| 7490101120 | 7490101120 | LP41606NL | S553-6500-44 |
| S553-1084-01 | S553-6500-E2 | S560-6600-GK | 13F-2010CNL |
| S553-1084-11 | S553-6500-E3 | S560-6600-GM | S553-6500-55 |
| S553-1506-AE | S553-6500-E4 | S560-6600-GV | S553-6500-58 |
| 13F-2010CNL | S553-6500-E5 | 7490101120 | 7490101120 |
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.With various Turns Ratios.
3.RoHS "NL" peak solder rating 260%%P5℃.
