Ürün Detayları
Menşe yeri: Guangdong, Huizhou
Marka adı: LINK-PP
Sertifika: UL,RoHS,Reach,ISO
Model numarası: 634108149621
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 150 PC
Fiyat: $6.3
Ambalaj bilgileri: Bant ve Makara ve Mylar
Teslim süresi: 3 gün içinde stok gemisinde
Ödeme koşulları: TT, NET30/60/90 Gün, Western Union
Yetenek temini: 5kk/ay
Parça Numarası: |
634108149621 |
Tip: |
WR-MJ Modüler Jac |
Tasarım: |
Dikey Yüzeye Montaj (SMT) |
Limanlar: |
1x1 |
Başvuru Sistemi: |
Kedi 3 |
Nominal Akım: |
1,5 A |
Çalışma voltajı: |
120 V (AC) |
Ekranlama: |
Plastik Korumasız |
Parça Numarası: |
634108149621 |
Tip: |
WR-MJ Modüler Jac |
Tasarım: |
Dikey Yüzeye Montaj (SMT) |
Limanlar: |
1x1 |
Başvuru Sistemi: |
Kedi 3 |
Nominal Akım: |
1,5 A |
Çalışma voltajı: |
120 V (AC) |
Ekranlama: |
Plastik Korumasız |

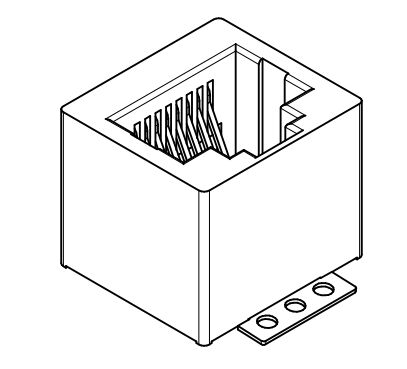

The 634108149621 WR-MJ Cat 3 Modular Jack is a single-port 8P8C vertical SMT RJ45 connector designed for reliable Ethernet connectivity in networking and embedded electronic systems.
Developed by Würth Elektronik, this modular jack belongs to the WR-MJ series and supports Category 3 Ethernet applications while maintaining compatibility with higher network categories under certain conditions.
With tape-and-reel packaging, soldering tab reinforcement, and reflow-compatible UL94-V0 housing, the connector is optimized for automated SMT assembly and stable long-term electrical performance.
It is widely used in network devices, IoT equipment, and smart building infrastructure requiring compact and reliable Ethernet interfaces.
| Parameter | Specification |
|---|---|
| Part Number | 634108149621 |
| Series | WR-MJ Modular Jack |
| Connector Type | RJ45 |
| Number of PINs | 8P8C |
| Ports | 1×1 |
| Orientation | Vertical |
| Mounting Type | SMT |
| Shielding | Plastic (Unshielded) |
| Soldering Tab | Yes |
| EMI Fingers | No |
| LED Indicator | No |
| Packaging | Tape & Reel / Mylar |
| Application System | CAT 3 Ethernet |
| Parameter | Symbol | Test Conditions | Value | Tolerance |
|---|---|---|---|---|
| Rated Current | IR | -- | 1.5 A | -- |
| Working Voltage | -- | AC | 120 V | -- |
| Withstanding Voltage | -- | 1 minute | 1000 V AC | -- |
| Contact Resistance | R | -- | ≤ 20 mΩ | Max |
| Insulation Resistance | RISO | -- | ≥ 500 MΩ | Min |
The 634108149621 Cat 3 RJ45 Modular Jack is designed to provide stable electrical performance for Ethernet and communication interfaces.
Key electrical characteristics include:
| Parameter | Specification |
|---|---|
| Insulator Material | LCP (Liquid Crystal Polymer) |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
The tape-and-reel packaging allows high-speed pick-and-place assembly, improving manufacturing efficiency in large-volume electronics production.
The integrated soldering tab enhances mechanical stability, ensuring secure attachment to the PCB during operation and repeated cable insertion.
The WR-MJ modular jack family offers multiple configuration options including:
This flexibility enables engineers to adapt the connector to a wide range of network device designs.
