Ürün Detayları
Menşe yeri: Çin
Marka adı: LINK-PP
Sertifika: UL,ROHS,Reach,ISO
Model numarası: LPJG4801GENL
belge: LPJG4801GENL.pdf
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 50/500/1000
Fiyat: $0.95
Ambalaj bilgileri: 50 adet/tepsi, 1200 adet/karton
Teslim süresi: Bugün stok gemisinde
Ödeme koşulları: TT, Net30/60/90 gün
Yetenek temini: 4600K.PCS/Ay
Parça Numarası: |
LPJG4801GENL |
Port sayısı: |
1x1 |
Mandal: |
Aşağı |
Veri Hızı: |
1000base-T |
Yetki Belgesi: |
Olmayan |
Led seçeneği: |
İle |
EMl Sekmeler: |
İle |
Montaj Tipi: |
Tht |
Lehim tipi: |
Dalga |
Çalışma sıcaklığı aralığı: |
-40°C ila +85°C |
Parça Numarası: |
LPJG4801GENL |
Port sayısı: |
1x1 |
Mandal: |
Aşağı |
Veri Hızı: |
1000base-T |
Yetki Belgesi: |
Olmayan |
Led seçeneği: |
İle |
EMl Sekmeler: |
İle |
Montaj Tipi: |
Tht |
Lehim tipi: |
Dalga |
Çalışma sıcaklığı aralığı: |
-40°C ila +85°C |

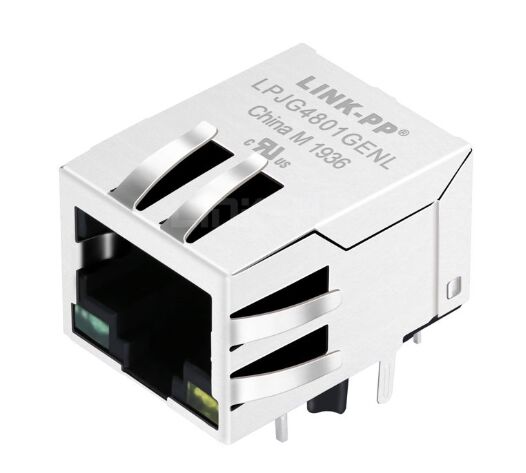

LPJG4801GENL is a single-port magnetic RJ45 connector with green/yellow LEDs, tab-down latch, EMI tabs, and 10/100/1000 Base-T support for non-PoE Ethernet designs.
| Item | Specification |
|---|---|
| Part Number | LPJG4801GENL |
| Connector Type | Magnetic Jack / RJ45 Female Connector |
| Port Count | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle, Side Entry |
| Latch | Down |
| LED Option | Green/Yellow |
| Shielding | EMI Tabs With Shield Support |
| Temperature Range | -40°C to +85°C |
| Package Size | 21.25 mm × 15.93 mm × 13.30 mm (L × W × H) |
| Item | Specification |
|---|---|
| Turns Ratio | TX = 1CT:1CT, RX = 1CT:1CT |
| Inductance | 350 µH min @ 100 kHz, 100 mV, 8 mA DC bias |
| Insertion Loss | 1~100 MHz: -1.0 dB max |
| Return Loss | 1~30 MHz: -18 dB min; 30~60 MHz: -16 dB min; 60~80 MHz: -12 dB min; 80~100 MHz: -10 dB min |
| Crosstalk | 1~30 MHz: -40 dB min; 30~60 MHz: -35 dB min; 60~100 MHz: -30 dB min |
| Common Mode Rejection | 1~50 MHz: -40 dB min; 50~150 MHz: -30 dB min |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | -40°C to +85°C |
The LPJG4801GENL is specifically designed for high-speed data transmission in various sectors:
The LPJG4801GENL is a high-performance, integrated Magnetic RJ45 Jack (MagJack) designed for Gigabit Ethernet applications. Combining superior EMI shielding with industrial-grade durability, this 10/100/1000 Base-T connector is the ideal solution for networking interfaces that require a compact footprint without compromising signal integrity.
With its 90° Right Angle orientation and Side Entry PCB mounting, it is engineered for seamless integration into routers, industrial PCs, and telecommunications equipment.
It is used as an integrated magnetic RJ45 connector for 10/100/1000 Base-T Ethernet ports in non-PoE network designs.
Yes. The product is listed with green/yellow LED options.
Yes. LINK-PP lists the mounting type as through hole.
It supports -40°C to +85°C.
