Ürün Detayları
Menşe yeri: Çin
Marka adı: LINK-PP
Sertifika: ISO 9001,ISO 14001,UL,SGS,REACH168
Model numarası: LPJK7403B97NL
belge: LPJK7403B97NL.pdf
Ödeme ve Gönderim Koşulları
Min sipariş miktarı: 50 adet
Fiyat: $0.7-$1.05
Ambalaj bilgileri: T&R
Teslim süresi: 3 gün içinde stok gemisinde
Ödeme koşulları: TT, NET30/60/90 Gün
Yetenek temini: 5kk/ay
P/N: |
LPJK7403B97NL |
Port sayısı: |
1x1 |
Mandal: |
Yukarı |
Veri Hızı: |
1000base-T |
Yetki Belgesi: |
Olmayan |
Led seçeneği: |
İle |
EMl Sekmeler: |
olmadan |
Montaj Tipi: |
Tht |
Lehim tipi: |
Dalga |
Çalışma Sıcaklığı Aralığı: |
-40°C ila +85°C |
P/N: |
LPJK7403B97NL |
Port sayısı: |
1x1 |
Mandal: |
Yukarı |
Veri Hızı: |
1000base-T |
Yetki Belgesi: |
Olmayan |
Led seçeneği: |
İle |
EMl Sekmeler: |
olmadan |
Montaj Tipi: |
Tht |
Lehim tipi: |
Dalga |
Çalışma Sıcaklığı Aralığı: |
-40°C ila +85°C |

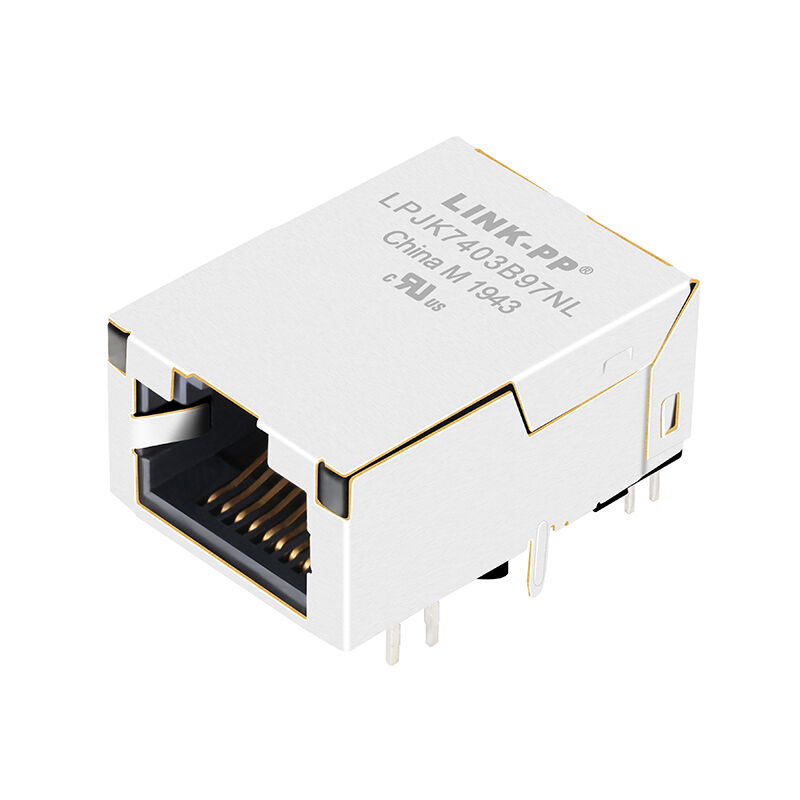

The LINK-PP LPJK7403B97NL is a premium-grade, single-port (1x1) Gigabit RJ45 Magjack connector engineered for 1000Base-TX networking applications. Featuring integrated magnetics, this right-angle, through-hole connector ensures superior signal integrity and EMI suppression for high-speed Ethernet environments. Built to withstand industrial operating temperatures from -40 to +85 Celsius and equipped with customizable LED indicators, the LPJK7403B97NL is the reliable choice for networking hardware, telecommunications, and industrial automation designs.
The LPJK7403B97NL is a high-performance 1×1 Gigabit Ethernet RJ45 MagJack designed for 1000Base-TX networking applications. Featuring integrated magnetics, 1500Vrms isolation, dual-color LED indicators, and industrial-grade operating temperatures from -40°C to +85°C, this connector provides a reliable and space-saving solution for modern Ethernet equipment.
Manufactured by LINK-PP, the LPJK7403B97NL complies with IEEE 802.3 requirements, making it suitable for networking devices that demand robust EMI performance, signal integrity, and long-term reliability.
- Gigabit Speed: Optimized for 1000Base-TX Ethernet applications.
- Integrated Magnetics: 350uH minimum OCL with 8mA bias ensures robust data transmission.
- Extreme Temperature Durability: Reliable operation in harsh environments (-40 to +85 Celsius).
- High-Quality Shielding: SUS 304-1/2H shielding with nickel plating for excellent EMI protection.
- Global Compliance: IEEE 802.3 compliant, UL Certified (E484635), and RoHS compliant.
| Parameter | Specification |
|---|---|
| Part Number | LPJK7403B97NL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Connector Type | RJ45 MagJack (12P8C, Ethernet) |
| Speed | 1000Base-TX (Gigabit Ethernet) |
| Number of Ports | 1×1 Port |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle (Side Entry) |
| Latch Orientation | Latch Up |
| PoE Function | Non-PoE |
| EMI Shield Tabs | Without |
| Left LED | Yellow / Green (Pins 15, 16, 17) |
| Right LED | Green (Pins 13, 14) |
| Package Length | 0.953 Inches / 24.20 mm |
| Package Width | 0.701 Inches / 17.80 mm |
| Package Height | 0.445 Inches / 11.30 mm |
| Parameter | Specification |
|---|---|
| Test Condition | 25°C |
| Turns Ratio (±2%) | 1CT:1CT |
| OCL (Open Circuit Inductance) | 350μH Min @ 100kHz, 100mVrms, 8mA DC Bias (0°C to 70°C) |
| Insertion Loss (0.5–100MHz) | -0.8dB Max |
| Insertion Loss (100–125MHz) | -1.2dB Max |
| Return Loss (0.5–40MHz) | -18dB Min |
| Return Loss (50–100MHz) | -[12-20LOG(f/80MHz)] dB Min |
| Crosstalk (0.5–40MHz) | -35dB Min |
| Crosstalk (40–100MHz) | -[33-20LOG(f/50MHz)] dB Min |
| Common Mode Rejection Ratio (CMRR) | -30dB Min (0.5–100MHz) |
| Isolation Voltage | 1500Vrms (PHY Side to Line Side) |
| Operating Temperature | -40°C to +85°C |
| Parameter | Specification |
|---|---|
| Standards Compliance | Meets IEEE 802.3 Specification |
| Housing Material | Thermoplastic PBT, UL94V-0 |
| Contact Material | High-Grade Copper Alloy |
| Shield Material | SUS 304-1/2H, Thickness: 0.2mm |
| Shield Plating | Nickel |
| Contact Plating | Gold, 6μin Minimum in Contact Area |
| Wave Solder Temperature | 250°C for 5 Seconds |
