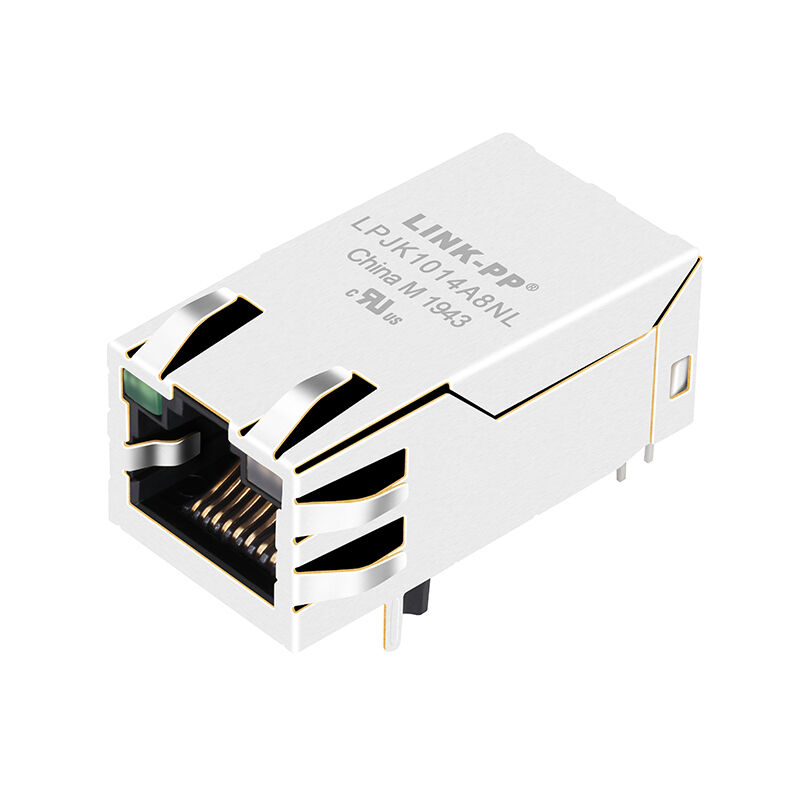

LPJK1014A8NL | LINK-PP 10/100Base-T IEEE 802.3af PoE RJ45 Jack

Ürün Detayları

Menşe yeri: Guangdong, Çin

Marka adı: LINK-PP

Sertifika: UL,ROHS,Reach,ISO

Model numarası: LPJK1014A8NL

belge: LPJK1014A8NL.pdf

Ödeme ve Gönderim Koşulları

Min sipariş miktarı: 50/500/1000

Fiyat: $0.09-$1.05

Ambalaj bilgileri: 1 tepside 50 adet, 1 kartonda 24 tepsi, yani her kartonda 32*30*31,8,5 KGS (1200 adet) bulunur

Teslim süresi: 3 gün içinde stok gemisinde

Ödeme koşulları: TT, Net30/60/90 gün

Yetenek temini: 3000000/Ay

En İyi Fiyatı Alın
Vurgulamak:
Uyumlu Markalar:
Belfuse
Port sayısı:
1x1
Mandal:
Yukarı
Veri Hızı:
100Base-T
Yetki Belgesi:
Yetki Belgesi
Led seçeneği:
İle
EMl Sekmeler:
İle
Montaj Tipi:
Tht
Lehim tipi:
Dalga
Çalışma Sıcaklığı Aralığı:
0°C ila +70°C
Uyumlu Markalar:
Belfuse
Port sayısı:
1x1
Mandal:
Yukarı
Veri Hızı:
100Base-T
Yetki Belgesi:
Yetki Belgesi
Led seçeneği:
İle
EMl Sekmeler:
İle
Montaj Tipi:
Tht
Lehim tipi:
Dalga
Çalışma Sıcaklığı Aralığı:
0°C ila +70°C
LPJK1014A8NL | LINK-PP 10/100Base-T IEEE 802.3af PoE RJ45 Jack
The 0826-1L1T-57-F is a single-port (1x1) 10/100Base-T Fast Ethernet MagJack featuring integrated IEEE 802.3at PoE+ (30W) power delivery capability. Key specifications include a Tab Up (latch up) port orientation, Through-Hole PCB mounting, 1500 Vrms dielectric isolation, an operating temperature of 0°C to +70°C, and integrated Green (Left) / Green-Yellow (Right) LEDs. It incorporates internal magnetics that prevent core saturation under up to 600mA continuous DC current,
